Stainless Steel Branch Fittings Manufacturer, Supplier & Exporter in India
Stainless Steel Branch Fittings manufactured and supplied by Astromet Steel & Engineering are engineered to create branch connections from a main pipeline without compromising strength, flow efficiency, or system integrity. These fittings provide a reinforced outlet connection that reduces the need for traditional tees and complex fabrication.
Branch fittings are designed to withstand high pressure, temperature, and corrosive environments. Stainless steel construction ensures excellent resistance to oxidation, pitting, and chemical attack, making these fittings ideal for critical piping systems across various industries.
Astromet Steel & Engineering supplies a wide range of Stainless Steel Branch Fittings including integrally reinforced and weld-on types. All fittings are manufactured under strict quality control to ensure dimensional accuracy and long-term performance.
Our Stainless Steel Branch Fittings help reduce weight, space, and installation time while maintaining superior mechanical strength.

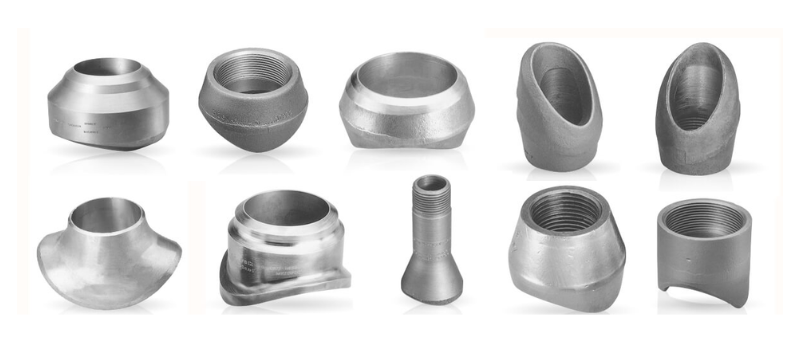

Types Of Stainless Steel Branch Fittings
- Weldolet
- Sockolet
- Threadolet
- Elbolet
- Nippolet
- Latrolet
Stainless Steel Branch Fittings Specifications
| Standard | Material Grade | Pressure Rating | Size Range |
|---|---|---|---|
| ASTM A182 / ASME SA182 | F304 / F304L / F316 / F316L / F317 / F321 / F310 | Class 3000 / 6000 | ½” – 36” |
| MSS SP-97 | Branch Outlet Dimensions | — | As per standard |
SS Branch Fittings Equivalent Grades
| Grade | ASTM | UNS | EN | DIN | JIS |
|---|---|---|---|---|---|
| SS 304 | A403 WP304 | S30400 | 1.4301 | X5CrNi18-10 | SUS 304 |
| SS 304L | A403 WP304L | S30403 | 1.4307 | X2CrNi18-9 | SUS 304L |
| SS 316 | A403 WP316 | S31600 | 1.4401 | X5CrNiMo17-12-2 | SUS 316 |
| SS 316L | A403 WP316L | S31603 | 1.4404 | X2CrNiMo17-12-2 | SUS 316L |
| SS 317 | A403 WP317 | S31700 | 1.4449 | X5CrNiMo18-15-4 | SUS 317 |
| SS 321 | A403 WP321 | S32100 | 1.4541 | X6CrNiTi18-10 | SUS 321 |
| SS 310 | A403 WP310 | S31000 | 1.4845 | X15CrNi25-20 | SUS 310 |
Stainless Steel Branch Fittings Chemical Composition
| Grade | C | Mn | Si | P | S | Cr | Ni | Mo |
|---|---|---|---|---|---|---|---|---|
| SS 304 | 0.08 | 2.00 | 1.00 | 0.045 | 0.030 | 18.0–20.0 | 8.0–10.5 | — |
| SS 304L | 0.03 | 2.00 | 1.00 | 0.045 | 0.030 | 18.0–20.0 | 8.0–12.0 | — |
| SS 316 | 0.08 | 2.00 | 1.00 | 0.045 | 0.030 | 16.0–18.0 | 10.0–14.0 | 2.0–3.0 |
| SS 316L | 0.03 | 2.00 | 1.00 | 0.045 | 0.030 | 16.0–18.0 | 10.0–14.0 | 2.0–3.0 |
| SS 317 | 0.08 | 2.00 | 1.00 | 0.045 | 0.030 | 18.0–20.0 | 11.0–15.0 | 3.0–4.0 |
| SS 321 | 0.08 | 2.00 | 1.00 | 0.045 | 0.030 | 17.0–19.0 | 9.0–12.0 | — |
| SS 310 | 0.25 | 2.00 | 1.50 | 0.045 | 0.030 | 24.0–26.0 | 19.0–22.0 | — |
Branch Fittings Mechanical Properties
| Property | Value |
|---|---|
| Tensile Strength | 485 MPa min |
| Yield Strength | 170 MPa min |
| Elongation | 40% min |
| Hardness | ≤ 217 HB |
Why Choose Astromet Steel & Engineering?
This advanced resistance to intergranular corrosion because of the
- Consistent quality & competitive pricing
- Ready stock & custom fabrication
- International standard compliance
- On-time delivery worldwide
- Complete documentation & certification
Stainless Steel Branch Fittings Usage & Applications
Stainless Steel Branch Fittings are extensively used in oil & gas pipelines, petrochemical plants, refineries, offshore platforms, power plants, chemical processing units, and marine piping systems. They are ideal for creating branch connections in high-pressure lines where space and weight reduction are critical.
Stainless Steel Branch Fittings are also widely used in process piping, fire protection systems, and industrial fluid handling applications requiring secure and reinforced branch outlets.
